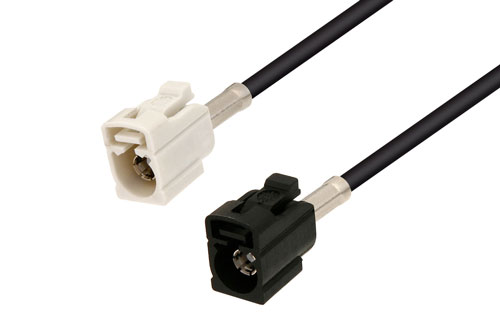

White FAKRA Jack to FAKRA Jack Cable Using RG174 Coax

Product ID: PE3W07431
White FAKRA Jack to FAKRA Jack Cable Using RG174 Coax

Image Views:


Please Enter Length to Calculate Price
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Click on the below images to access KitBOM product pages:


PE44646BRG174A/UPE44646AKitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1FAKRA
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2FAKRA
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


White FAKRA Jack to FAKRA Jack Cable Using RG174 Coax

PE3W07431 is a FAKRA jack to FAKRA jack cable using RG174 coax. This Pasternack FAKRA jack to FAKRA jack cable assembly uses a 50 Ohm FAKRA for connector 1 and a 50 Ohm FAKRA for connector 2.

Our jack FAKRA to jack FAKRA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07431 FAKRA jack to FAKRA jack cable assembly is constructed with RG174 coax.
