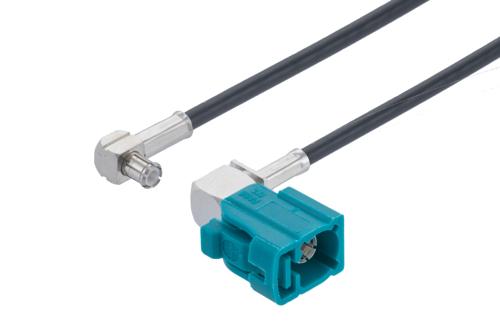

Radio frequency assembly water blue FAKRA jack right angle to MCX plug right angle low loss cable using LMR-100A-UF coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The water blue FAKRA jack right angle to MCX plug right angle low loss cable using LMR-100A-UF coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom FAKRA to MCX cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss cable assembly is built with a right angle FAKRA cable connection on one end and a right angle MCX cable connection on the other. Our low loss right angle FAKRA to right angle MCX cable assembly has a jack gender on end 1 and a plug on end 2. PE3W13801 can also be known as a low loss right angle FAKRA female to right angle MCX male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W13801 RF cable has a TPE jacket of 0.110-inch diameter. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 66% and a minimum RF shielding of 90 dB. Our right angle FAKRA jack to right angle MCX plug cable has a maximum VSWR of 1.4:1.
FAKRA female to MCX male cable assembly PE3W13801 is built with LMR-100A-UF which is a flexible coax type. The Pasternack flexible FAKRA cable assembly is manufactured with right angle FAKRA to right angle MCX cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W13801 can also be used in the other direction and will be a right angle MCX plug to right angle FAKRA jack cable assembly if the opposite connectivity is required.
Low loss FAKRA right angle female to MCX right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality FAKRA to MCX cable assembly for quick shipment worldwide. Variations of FAKRA and MCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal FAKRA to MCX low loss RF cable assembly as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
