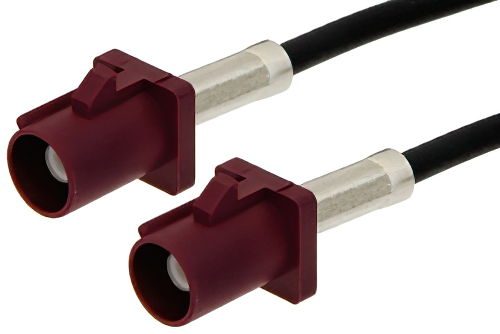

Bordeaux FAKRA Plug to FAKRA Plug Cable 60 Inch Length Using PE-C100-LSZH Coax

Product ID: PE38747D-60

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$50.29
25-49$47.78
50-99$45.26
100-249$43.25
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 32
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1FAKRA
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2FAKRA
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-C100-LSZH
RF Cable TypePE-C100-LSZH
RF Cable Impedance50 Ohm
Length60 inches

Description

Bordeaux FAKRA Plug to FAKRA Plug Cable 60 Inch Length Using PE-C100-LSZH Coax

The PE38747D-60 is a FAKRA plug to plug RF cable designed for in-series interconnects, offering 50 Ohm impedance and DC to 4 GHz operation. It supports RF and electronic system integration where keyed FAKRA interfaces help maintain reliable cable connections in compact assemblies. Built with PE-C100-LSZH flexible coax, it uses plastic connector bodies, gold-plated phosphor bronze contacts, and Teflon dielectrics with 1.4:1 maximum VSWR.

Pasternack RF coax low loss cable assembly is built with FAKRA cable connection on one end and FAKRA cable connection on the other. Our low loss FAKRA to FAKRA cable assemblies have a plug gender on end 1 and plug on end 2. This FAKRA to FAKRA cable is a plug to plug coax assembly, PE38747D-60, can also be known as a low loss FAKRA male to FAKRA male cable assembly and will be shipped same-day as it is purchased.

FAKRA male to FAKRA male cable assembly PE38747D-60 is built with PE-C100-LSZH which is a flexible coax type. The Pasternack flexible FAKRA cable assembly is manufactured with FAKRA to FAKRA cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 4 GHz maximum frequency FAKRA plug to FAKRA plug cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

Low loss FAKRA male to FAKRA male cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality FAKRA to FAKRA cable assembly for quick shipment worldwide. Variations of FAKRA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this bordeaux FAKRA plug to FAKRA plug cable 60 inch length using PE-C100-LSZH coax.

Frequently Asked Questions

What is the PE38747D-60 FAKRA cable assembly used for?

The PE38747D-60 is a FAKRA plug to FAKRA plug cable assembly used for in-series RF interconnects in electronic systems. It uses 50 Ohm PE-C100-LSZH flexible coax and supports DC to 4 GHz operation with a maximum VSWR of 1.4:1. Engineers use this cable where both ends of the link require standard straight FAKRA plug connectors. It fits integration tasks that need flexible routing, LSZH jacket material, and consistent keyed connector interfaces.

When would I choose a FAKRA plug to plug cable instead of separate connectors?

A FAKRA plug to plug cable like PE38747D-60 is used when a complete terminated assembly saves installation time and reduces assembly variation. This cable combines straight plug connectors, crimp and solder attachment methods, and 50 Ohm PE-C100-LSZH coax in one part. It is useful in production builds, bench integration, and enclosed electronic assemblies that need repeatable cable performance. Choosing a finished assembly also helps engineers avoid separate connector termination work during prototype and deployment stages.

Is the PE38747D-60 suitable for automotive and electronic integration work?

The PE38747D-60 is suitable for automotive and electronic integration work where FAKRA interfaces are required for organized RF cable connections. It supports DC to 4 GHz operation and uses gold-plated phosphor bronze contacts with Teflon dielectric for dependable electrical performance. System integrators can use it in telematics modules, internal RF harnesses, and other compact assemblies needing flexible cable routing. Its LSZH jacket and in-series plug-to-plug format also make it practical for enclosed equipment and managed cable environments.

What construction details make the PE38747D-60 useful in compact RF assemblies?

The PE38747D-60 is built for compact RF assemblies using flexible PE-C100-LSZH coax and straight FAKRA plug connectors on both ends. Its construction includes plastic connector bodies, gold-plated phosphor bronze contacts, Teflon dielectric types, and crimp or solder attachment methods. These materials and interfaces support organized routing where space is limited and controlled connector engagement is important. Engineers often select this format when they need a ready-to-install 50 Ohm cable assembly for enclosed electronic systems.
