FAKRA Plug to FAKRA Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

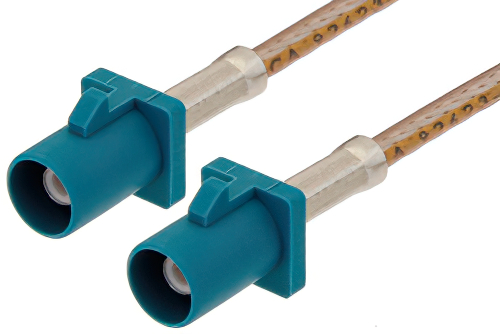

Water Blue FAKRA Plug to FAKRA Plug Cable Using RG316 Coax

Product ID: PE38755Z
Water Blue FAKRA Plug to FAKRA Plug Cable Using RG316 Coax

Image Views:  Water Blue FAKRA Plug to FAKRA Plug Cable Using RG316 Coax high resolution
Zoom


Click for:PE38755Z Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1FAKRA
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2FAKRA
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


Water Blue FAKRA Plug to FAKRA Plug Cable Using RG316 Coax

PE38755Z is a FAKRA plug to FAKRA plug cable using RG316 coax. This Pasternack FAKRA plug to FAKRA plug cable assembly uses a 50 Ohm FAKRA for connector 1 and a 50 Ohm FAKRA for connector 2.

Our plug FAKRA to plug FAKRA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38755Z FAKRA plug to FAKRA plug cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
