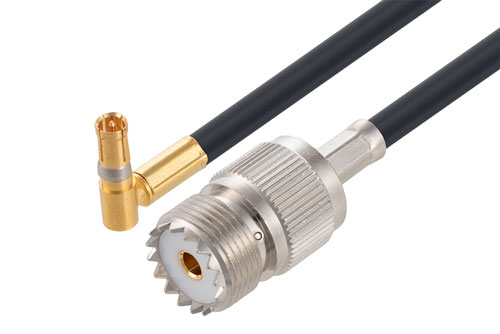

Fire Rated D-Sub Receptacle Right Angle to UHF Female Low Loss Cable Using LMR-195-FR Coax

Product ID: PE3W08479

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	D-Subminiature
Connector 1 Gender	Receptacle
Connector 1 Polarity	Standard
Connector Angle 1	Right Angle
Connector 1 Impedance	50 Ohm
Connector 2 Series	UHF
Connector 2 Gender	Female
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Gold
RF Cable Part Number	LMR-195-FR
RF Cable Type	LMR-195-FR
RF Cable Impedance	50 Ohm

Description

Fire Rated D-Sub Receptacle Right Angle to UHF Female Low Loss Cable Using LMR-195-FR Coax

Radio frequency assembly fire rated D-Sub receptacle right angle to UHF female low loss cable using LMR-195-FR coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The Fire rated D-Sub receptacle right angle to UHF female low loss cable using LMR-195-FR coax, D-Subminiature cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom D-Subminiature to UHF cable assembly orders will ship same day as well.

Pasternack RF coax low loss cable assembly is built with right angle D-Subminiature cable connection on one end and UHF cable connection on the other. Our low loss right angle D-Subminiature to UHF cable assemblies have a receptacle gender on end 1 and female on end 2. PE3W08479 can also be known as a low loss right angle D-Subminiature receptacle to UHF jack cable assembly and will be shipped same-day as it is purchased.

D-Subminiature receptacle to UHF jack cable assembly PE3W08479 is built with LMR-195-FR which is a flexible coax type. The Pasternack flexible D-Subminiature cable assembly is manufactured with right angle D-Subminiature to UHF cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this D-Subminiature right angle receptacle to UHF female cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W08479 can also be used in the other direction and will be UHF female to right angle D-Subminiature receptacle cable assembly if the opposite connectivity is required.

Low loss D-Subminiature right angle receptacle to UHF jack cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality D-Subminiature to UHF cable assembly for quick shipment worldwide. Variations of D-Subminiature cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this fire rated D-Sub receptacle right angle to UHF female low loss cable using LMR-195-FR coax.
