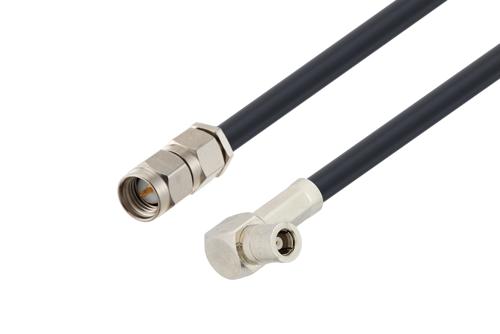

Pasternack’s PE3W20460 low loss SMA male to right angle SMB plug RF cable assembly using LMR-195-FR coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMA male to SMB plug cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to SMB cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss cable assembly is built with an SMA cable connection on one end and a right angle SMB cable connection on the other. Our SMA to SMB cable assembly has a male gender on end 1 and a plug on end 2. PE3W20460 can also be known as a low loss SMA plug to right angle SMB male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable’s inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 2-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20460 RF cable has an frpe jacket of 0.195-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 76% and a minimum RF shielding of 90 dB. Our SMA male to right angle SMB plug cable has a maximum VSWR of 1.4:1.
This PE3W20460 SMA plug to SMB male cable assembly is built with LMR-195-FR, which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to right angle SMB cable connectors, has a 50 Ohm impedance, and is double shielded. One connector features the clamp/solder attachment method and a brass body with nickel plating, while the other has the crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications, and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W20460 can also be used in the other direction and will be a right angle SMB plug to SMA male cable assembly if the opposite connectivity is required.
This low loss SMA plug to SMB right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to SMB cable assembly for quick shipment worldwide. Variations of SMA and SMB cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to SMB low loss RF cable assembly as per your requirements.LMR® is a registered trademark of Times Microwave Systems.
