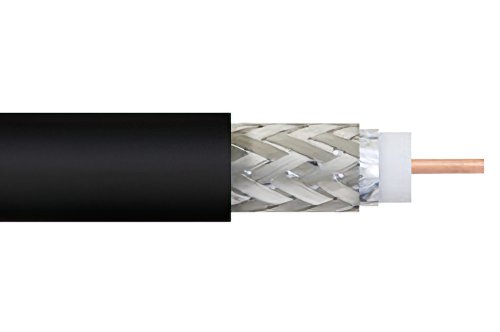

Low Loss Flexible .200 inch Foam Dielectric Type Coax Cable Double Shielded with Black PE Jacket
Product ID:
PE-C200
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | .200 inch Foam Dielectric Type |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PE (F) |
| Velocity of Propagation | 83 % |
| Jacket Diameter | 0.195 in |
| Jacket Material | PE |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 10.8 dB |
| Power, Max at 1 Ghz. | 170 Watts |
| RF Shielding | 90 dB |
| Frequency, Max | 5.8 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Coax Type | Coax |
Description
Low Loss Flexible .200 inch Foam Dielectric Type Coax Cable Double Shielded with Black PE Jacket
PE-C200 part number from Pasternack is a .200 inch Foam Dielectric Type coax cable that is flexible. Pasternack PE-C200 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-C200 coax is constructed with a 0.195 jacket made of PE. PE-C200 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 5.8 GHz. PE-C200 coax cable has an attenuation at 1 GHz of 10.8 dB and a maximum power of 170 watts at 1 GHz.
Pasternack .200 inch Foam Dielectric Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-C200 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-C200 or other coax can be built and shipped same day as well.
