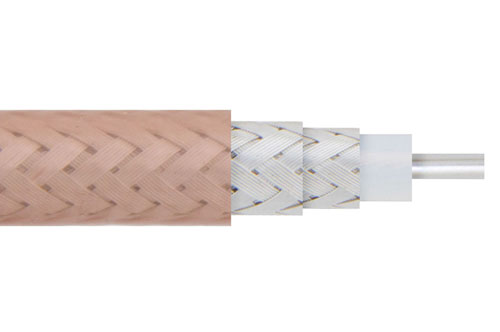

Flexible RG142 Coax Cable (by foot) Double Shielded with Tan FEP Jacket

Name: Flexible RG142 Coax Cable (by foot) Double Shielded with Tan FEP Jacket
Brand: Pasternack
SKU: RG142B/U-FT
Availability: Discontinued

Product ID: RG142B/U-FT

Product discontinued.

Replaced with RG142B/U-BULK.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG142
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	70 %
Jacket Diameter	0.195 in
Jacket Material	FEP
No. of Shields	2
Attenuation at 1 Ghz.	12.9 dB
Frequency, Max	8 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, Repeated	1 in
Coax Type	Coax

Description

Flexible RG142 Coax Cable (by foot) Double Shielded with Tan FEP Jacket

RG142B/U-FT part number from Pasternack is a RG142 coax cable that is flexible. Pasternack RG142 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG142 coax is constructed with a 0.195 jacket made of FEP. RG142 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 8 GHz. RG142 coax cable has an attenuation at 1 GHz of 12.9 dB.

Pasternack RG142 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG142 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG142 or other coax can be built and shipped same day as well.
