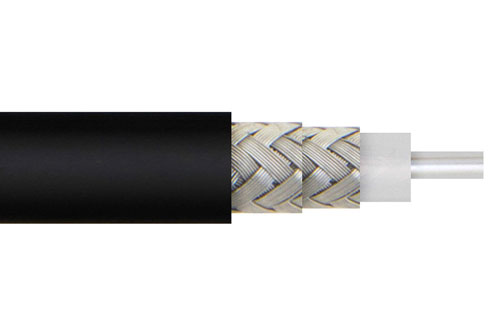

Flexible RG223 Coax Cable (by foot) Double Shielded with Black PVC Jacket

Name: Flexible RG223 Coax Cable (by foot) Double Shielded with Black PVC Jacket
Brand: Pasternack
SKU: RG223/U-FT
Availability: Discontinued

Product ID: RG223/U-FT

Product discontinued.

Replaced with RG223/U-BULK.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG223
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE
Velocity of Propagation	66 %
Jacket Diameter	0.209 in
Jacket Material	PVC
No. of Shields	2
Attenuation at 1 Ghz.	13.41 dB
Power, Max at 1 Ghz.	50 Watts
Frequency, Max	12.4 GHz
Max Operating Temperature	80 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, Repeated	1 in
Coax Type	Coax

Description

Flexible RG223 Coax Cable (by foot) Double Shielded with Black PVC Jacket

RG223/U-FT part number from Pasternack is a RG223 coax cable that is flexible. Pasternack RG223 flexible coax cable is 50 Ohm and has a PE dielectric. Our RG223 coax is constructed with a 0.209 jacket made of PVC. RG223 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 12.4 GHz. RG223 coax cable has an attenuation at 1 GHz of 13.41 dB and a maximum power of 50 watts at 1 GHz.

Pasternack RG223 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG223 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG223 or other coax can be built and shipped same day as well.
