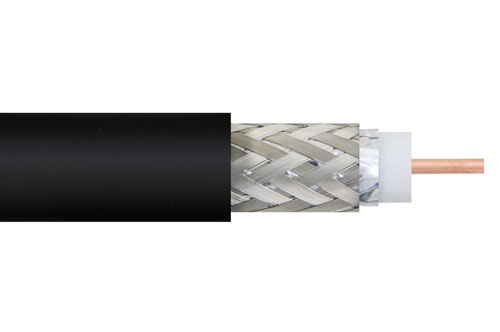

Low Loss Flexible RG8X Type Coax Cable Double Shielded with Black PE Jacket

Name: Low Loss Flexible RG8X Type Coax Cable Double Shielded with Black PE Jacket
Brand: Pasternack
SKU: PE-C240-BULK
Availability: InStock

Product ID: PE-C240-BULK

Pricing

Quantity (Feet)	Price
1-24	$3.17
25-49	$3.01
50-99	$2.85
100-249	$2.73
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 700

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG8X Type
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE (F)
Velocity of Propagation	84 %
Jacket Diameter	0.24 in
Jacket Material	PE
No. of Shields	2
Attenuation at 1 Ghz.	7.98 dB
Power, Max at 1 Ghz.	250 Watts
RF Shielding	90 dB
Frequency, Max	6 GHz
Max Operating Temperature	85 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.75 in
Minimum Bend Radius, Repeated	2.5 in
Coax Type	Coax

Description

Low Loss Flexible RG8X Type Coax Cable Double Shielded with Black PE Jacket

PE-C240-BULK part number from Pasternack is a RG8X Type coax cable that is flexible. Pasternack PE-C240 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-C240 coax is constructed with a 0.24 jacket made of PE. PE-C240 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 6 GHz. PE-C240 coax cable has an attenuation at 1 GHz of 7.98 dB and a maximum power of 250 watts at 1 GHz.

Pasternack RG8X Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-C240 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-C240 or other coax can be built and shipped same day as well.
