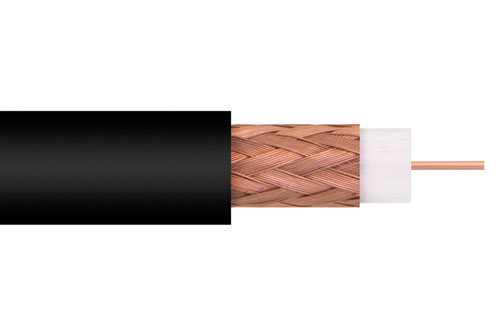

75 Ohm Flexible RG59 Coax Cable Single Shielded with Black PVC (NC) Jacket

Name: 75 Ohm Flexible RG59 Coax Cable Single Shielded with Black PVC (NC) Jacket
Brand: Pasternack
SKU: RG59B/U-BULK
Availability: OutOfStock

Product ID: RG59B/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$2.47
25-49	$2.35
50-99	$2.22
100-249	$2.12
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG59
Flex Type	Flexible
Impedance	75 Ohm
Dielectric Type	PE
Velocity of Propagation	66 %
Jacket Diameter	0.242 in
Jacket Material	PVC (NC)
No. of Shields	1
Attenuation at 1 Ghz.	11.5 dB
Power, Max at 1 Ghz.	77 Watts
Frequency, Max	1 GHz
Max Operating Temperature	70 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Coax Type	Coax

Description

75 Ohm Flexible RG59 Coax Cable Single Shielded with Black PVC (NC) Jacket

RG59B/U-BULK part number from Pasternack is a RG59 coax cable that is flexible. Pasternack RG59 flexible coax cable is 75 Ohm and has a PE dielectric. Our RG59 coax is constructed with a 0.242 jacket made of PVC (NC). RG59 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 1 GHz. RG59 coax cable has an attenuation at 1 GHz of 11.5 dB and a maximum power of 77 watts at 1 GHz.

Pasternack RG59 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG59 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG59 or other coax can be built and shipped same day as well.
