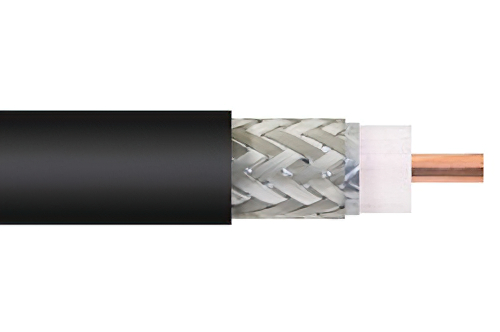

Low Loss Flexible .300 inch Foam Dielectric Type Coax Cable Double Shielded with Black PE Jacket
Product ID:
PE-C300
* This item may be subject to an additional
Tariff Surcharge of 15.0% each for US customers, which will be applied at checkout.
Pricing
| FEET | Price |
| 1-99 | $3.74 |
| 100-499 | $3.55 |
| 500-999 | $3.37 |
| 1000-2499 | $3.22 |
| 2500+ | Call Us |
* All Prices are in US Dollars and do not include duties
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
* This item may be subject to an additional
Tariff Surcharge of 15.0% each for US customers, which will be applied at checkout.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | .300 inch Foam Dielectric Type |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PE (F) |
| Velocity of Propagation | 85 % |
| Jacket Diameter | 0.3 in |
| Jacket Material | PE |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 6.3 dB |
| Power, Max at 1 Ghz. | 350 Watts |
| Frequency, Max | 2.5 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 1.5 in |
| Coax Type | Coax |
Description
Low Loss Flexible .300 inch Foam Dielectric Type Coax Cable Double Shielded with Black PE Jacket
PE-C300 part number from Pasternack is a .300 inch Foam Dielectric Type coax cable that is flexible. Pasternack PE-C300 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-C300 coax is constructed with a 0.3 jacket made of PE. PE-C300 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 2.5 GHz. PE-C300 coax cable has an attenuation at 1 GHz of 6.3 dB and a maximum power of 350 watts at 1 GHz.
Pasternack .300 inch Foam Dielectric Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-C300 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-C300 or other coax can be built and shipped same day as well.
