Flexible Coax Cables 50 Ohm Low Loss

Check out our new RF calculators & conversion tools...

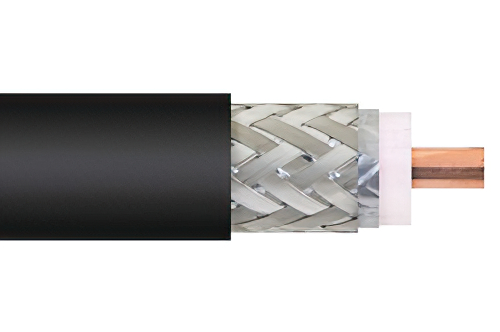

Low Loss Flexible RG8 Type Coax Cable Double Shielded with Black PE Jacket

Product ID: PE-C400
Low Loss Flexible RG8 Type Coax Cable Double Shielded with Black PE Jacket

Image Views:  Low Loss Flexible RG8 Type Coax Cable Double Shielded with Black PE Jacket high resolution
Zoom


Click for:PE-C400 Datasheet
Click for:PE-C400 RoHS Cert
Click for:PE-C400 REACH Cert
Available Feet: 18,140
Pricing Table
FEETPRICE
1-99$1.60
100-499$1.52
500-999$1.44
1000-2499$1.38
2500+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 15.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic NameRG8 Type
Flex TypeFlexible
Impedance50 Ohm
Dielectric TypePE (F)
Velocity of Propagation85 %
Jacket Diameter0.405 in
Jacket MaterialPE
No. of Shields2
Attenuation at 1 Ghz.4.1 dB
Power, Max at 1 Ghz.480 Watts
RF Shielding90 dB
Frequency, Max5.8 GHz
Max Operating Temperature85 deg C
Center Conductor TypeSolid
Inner Conductor, Number of Strands1
Minimum Bend Radius, Repeated4 in
Coax TypeCoax


Low Loss Flexible RG8 Type Coax Cable Double Shielded with Black PE Jacket

PE-C400 part number from Pasternack is a RG8 Type coax cable that is flexible. Pasternack PE-C400 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-C400 coax is constructed with a 0.405 jacket made of PE. PE-C400 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 5.8 GHz. PE-C400 coax cable has an attenuation at 1 GHz of 4.1 dB and a maximum power of 480 watts at 1 GHz.

Pasternack RG8 Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-C400 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-C400 or other coax can be built and shipped same day as well.
