Flexible Coax Cables 75 Ohm Standard

Check out our new RF calculators & conversion tools...

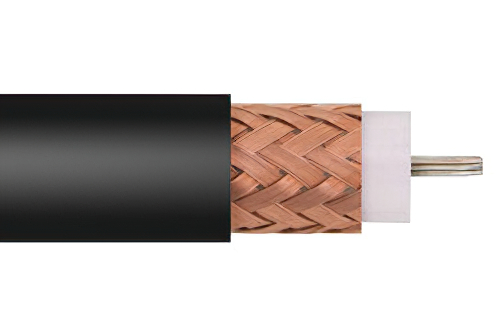

75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket

Product ID: RG11A/U
75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket

Image Views:  75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket high resolution
Zoom


Click for:RG11A/U Datasheet
Click for:RG11A/U RoHS Cert
Click for:RG11A/U REACH Cert
Available Feet: 13,577
Pricing Table
FEETPRICE
1-99$1.93
100-249$1.79
250-499$1.66
500-999$1.54
1000+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Generic NameRG11
Flex TypeFlexible
Impedance75 Ohm
Dielectric TypePE
Velocity of Propagation66 %
Jacket Diameter0.405 in
Jacket MaterialPVC
No. of Shields1
Attenuation at 1 Ghz.8.11 dB
Power, Max at 1 Ghz.150 Watts
RF Shielding45 dB
Frequency, Max1,000 MHz
Max Operating Temperature80 deg C
Center Conductor TypeStranded
Inner Conductor, Number of Strands7
Minimum Bend Radius, Repeated4.5 in
Coax TypeCoax


75 Ohm Flexible RG11 Coax Cable Single Shielded with Black PVC Jacket

RG11A/U part number from Pasternack is a RG11 coax cable that is flexible. Pasternack RG11 flexible coax cable is 75 Ohm and has a PE dielectric. Our RG11 coax is constructed with a 0.405 jacket made of PVC. RG11 coax has a shield count of 1, a RF shielding of 45 dB and the maximum frequency for this Pasternack cable is 1,000 MHz. RG11 coax cable has an attenuation at 1 GHz of 8.11 dB and a maximum power of 150 watts at 1 GHz.

Pasternack RG11 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG11 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG11 or other coax can be built and shipped same day as well.
