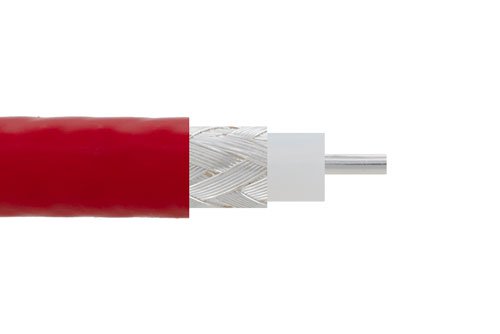

RG303HV-BULK part number from Pasternack is a coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 50 Ohm and a FEP dielectric. Our RG303HV coax cable is constructed with a 0.169-inch jacket made of FEP. This red-colored coax cable has a nominal capacitance of 308.4 pF/Ft.
Our coax cable from Pasternack has a maximum frequency of 3 GHz. This red colored high voltage coax cable has a 0.138-inch shield layer of silver copper. Additional specifications for this RG303HV-BULK single shielded RF coaxial cable are on our downloadable PDF datasheet above. This RF cable has a repeat minimum bend radius of 0.788 inch.
Our RG303HV coax cable can operate at temperatures ranging from -65 to +200 degrees C. Our red-colored coax cable has a typical insertion loss/attenuation of 2.48, 7.35, 12.09 and 22.52 dB/100ft at frequency of 50 MHz, 400 MHz, 1 GHz and 3 GHz respectively. The RG303HV-BULK flexible RF cable has a silver center conductor with copper clad aluminum conductor plating.
Pasternack RG303HV-BULK coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using RG303HV or other coax can be built and shipped the same business day as well.
