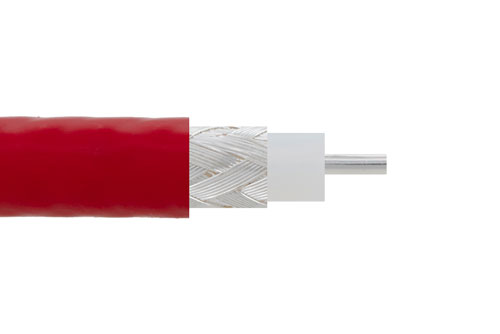

RG303HV part number from Pasternack is a coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 50 Ohm and a FEP dielectric. Our RG303HV coax cable is constructed with a 0.169-inch jacket made of FEP. This red-colored coax cable has a nominal capacitance of 308.4 pF/Ft.
Our coax cable from Pasternack has a maximum frequency of 3 GHz. This red colored high voltage coax cable has a 0.138-inch shield layer of silver copper. Additional specifications for this RG303HV single shielded RF coaxial cable are on our downloadable PDF datasheet above. This RF cable has a repeat minimum bend radius of 0.788 inch.
Our RG303HV coax cable can operate at temperatures ranging from -65 to +200 degrees C. Our red-colored coax cable has a typical insertion loss/attenuation of 2.48, 7.35, 12.09 and 22.52 dB/100ft at frequency of 50 MHz, 400 MHz, 1 GHz and 3 GHz respectively. The RG303HV flexible RF cable has a silver center conductor with copper clad aluminum conductor plating.
Pasternack RG303HV coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using RG303HV or other coax can be built and shipped the same business day as well.
