FME Jack to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

FME Jack to BNC Male Cable Using RG142 Coax

Product ID: PE34864

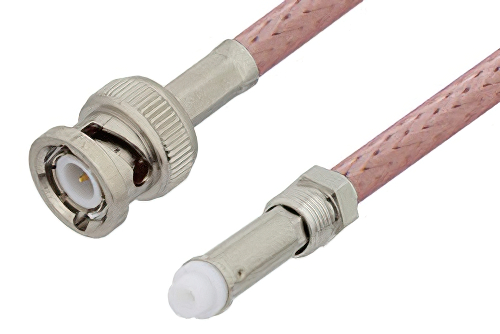

FME Jack to BNC Male Cable Using RG142 Coax

Image Views:  FME Jack to BNC Male Cable Using RG142 Coax high resolution
Zoom


Click for:PE34864 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1FME
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG142B/U
RF Cable TypeRG142
RF Cable Impedance50


FME Jack to BNC Male Cable Using RG142 Coax

PE34864 is a FME jack to BNC male cable using RG142 coax. This Pasternack FME jack to BNC male cable assembly uses a 50 Ohm FME for connector 1 and a 50 Ohm BNC for connector 2.

Our jack FME to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34864 FME jack to BNC male cable assembly is constructed with RG142 coax.
