FME Jack to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

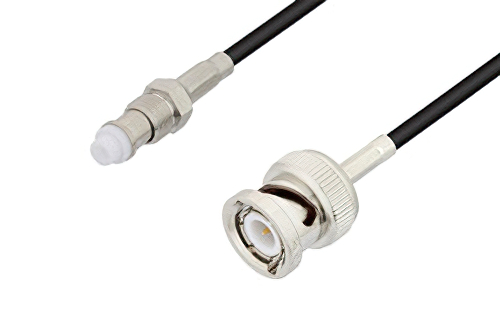

FME Jack to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

Product ID: PE3C3409LF
FME Jack to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

Image Views:  FME Jack to BNC Male Cable Using RG174 Coax, LF Solder, RoHS high resolution
Zoom


Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1FME
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


FME Jack to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

PE3C3409LF is a FME jack to BNC male cable using RG174 coax. This Pasternack FME jack to BNC male cable assembly uses a 50 Ohm FME for connector 1 and a 50 Ohm BNC for connector 2.

Our jack FME to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3409LF FME jack to BNC male cable assembly is constructed with RG174 coax.
