WR-112 Waveguide Adapters

Check out our new RF calculators & conversion tools...

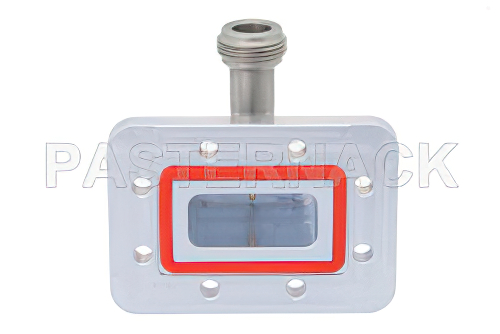

WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz

Product ID: PE9837
WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz


Image Views:  WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz high resolution
Zoomalternate image
View 2


Click for:PE9837 Datasheet
Click for:PE9837 RoHS Cert
Available Quantity: 34
Pricing Table
QUANTITYPRICE
1-24$569.11
25-49$529.27
50-99$489.43
100-249$455.29
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-112
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency7.05 GHz
Maximum Frequency10 GHz
Maximum VSWR1.3:1


WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band

PE9837 WR-112 waveguide to coax adapter is also known as a WR-112 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-112 to type N connector and has a female gender. Our WR-112 to type N female waveguide adapter transition has a right angle design and has a cpr-112g flange. Pasternack right angle WR-112 to N type waveguide to coaxial cable transition / adapter has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.

WR112 waveguide to type N transition adapter to coax PE9837 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-112 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
