High Power WR-75 Waveguide Terminations

Check out our new RF calculators & conversion tools...

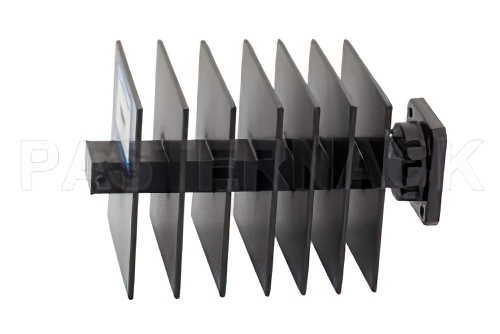

175 Watts High Power WR-75 Waveguide Load 10 GHz to 15 GHz

Product ID: PE6832
175 Watts High Power WR-75 Waveguide Load 10 GHz to 15 GHz


Image Views:  175 Watts High Power WR-75 Waveguide Load 10 GHz to 15 GHz high resolution
Zoomalternate image
View 2


Click for:PE6832 Datasheet
Available Quantity: 1
Pricing Table
QUANTITYPRICE
1-24$1,191.43
25-49$1,108.03
50-99$1,024.63
100-249$953.14
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power175 Watt
Waveguide SizeWR-75
Minimum Frequency10 GHz
Maximum Frequency15 GHz
Impedance50 Ohm


175 Watts High Power WR-75 Waveguide Load 10 GHz to 15 GHz

PE6832 175 Watts high power waveguide load (also known as waveguide termination) has a WR-75 input. This Pasternack WR-75 waveguide load / termination is rated for a minimum frequency of 10 GHz and a maximum frequency of 15 GHz. Our WR-75 waveguide terminator has a maximum input power of 175 Watts.

WR-75 waveguide load / termination PE6832 has an average maximum VSWR of 1.1:1. This Pasternack WR-75 high power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-75 load ships same day as purchased worldwide as with our other RF parts.
