High Power WR-62 Waveguide Terminations

Check out our new RF calculators & conversion tools...

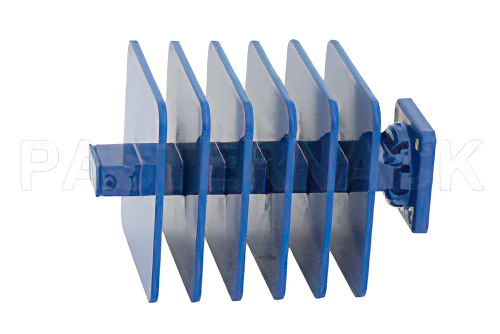

175 Watts High Power WR-62 Waveguide Load 12.4 GHz to 18 GHz

Product ID: PE6831
175 Watts High Power WR-62 Waveguide Load 12.4 GHz to 18 GHz


Image Views:  175 Watts High Power WR-62 Waveguide Load 12.4 GHz to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE6831 Datasheet
Click for:PE6831 RoHS Cert
Click for:PE6831 REACH Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-24$1,141.52
25-49$1,061.61
50-99$981.71
100-249$913.22
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power175 Watt
Waveguide SizeWR-62
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Impedance50 Ohm


175 Watts High Power WR-62 Waveguide Load 12.4 GHz to 18 GHz

PE6831 175 Watts high power waveguide load (also known as waveguide termination) has a WR-62 input. This Pasternack WR-62 waveguide load / termination is rated for a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz. Our WR-62 waveguide terminator has a maximum input power of 175 Watts.

WR-62 waveguide load / termination PE6831 has an average maximum VSWR of 1.1:1. This Pasternack WR-62 high power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-62 load ships same day as purchased worldwide as with our other RF parts.
