HN Female Straight Connectors

Check out our new RF calculators & conversion tools...

HN Female Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393

Product ID: PE4229

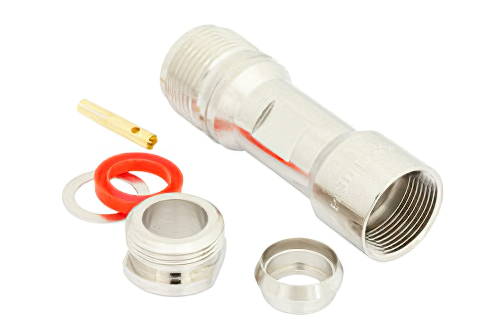

HN Female Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393


Image Views:  HN Female Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393 high resolution
Zoomalternate image
View 2


Click for:PE4229 Datasheet
Click for:PE4229 RoHS Cert
Click for:PE4229 REACH Cert
Available Quantity: 210
Pricing Table
QUANTITYPRICE
1-24$55.86
25-49$53.07
50-99$50.27
100-249$48.04
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesHN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency10 GHz


HN Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

PE4229 HN female coaxial connector has an interface type of RG213, RG214, RG8, RG9, RG225, RG393 and a 50 Ohm impedance. Pasternack HN female connector uses shield/contact clamp/solder as an attachment method. Our female HN coaxial connector provides a minimum frequency of DC and a maximum frequency of 10 GHz.

The Pasternack HN female coaxial connector has a teflon dielectric type. The Pasternack HN coaxial connector has a brass body with nickel plating. Our PE4229 HN connector uses brass contact. This HN female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female HN connector will ship the same day as purchased. Our HN female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom HN connector cable assemblies that will ship the same day as well.
