HN to HN Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

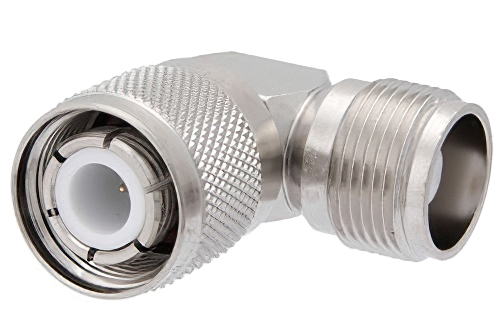

HN Male to HN Female Right Angle Adapter

Product ID: PE9205
HN Male to HN Female Right Angle Adapter

Image Views:  HN Male to HN Female Right Angle Adapter high resolution
Zoom


Click for:PE9205 Datasheet
Click for:PE9205 RoHS Cert
Click for:PE9205 REACH Cert
Available Quantity: 419
Pricing Table
QUANTITYPRICE
1-24$63.35
25-49$60.18
50-99$57.02
100-249$54.48
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1HN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2HN
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max3 GHz
Adapter Body StyleRight Angle
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


HN Male to HN Female Right Angle Adapter

HN adapter PE9205 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our HN to HN adapter is a in-series coaxial adapter design. This 50 Ohm HN adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 3 GHz.

HN male to HN female adapter is one of the many RF components that ship same day as they are ordered. PE9205 male HN to female HN adapter has a right angle body. This Pasternack right angle HN coax adapter is a 90 degree right angle RF elbow adapter.

Our male HN to female HN adapter PE9205 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This HN to HN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
