HN Male to HN Male Cable Assemblies

Check out our new RF calculators & conversion tools...

HN Male to HN Male Cable Using RG214 Coax

Product ID: PE3095

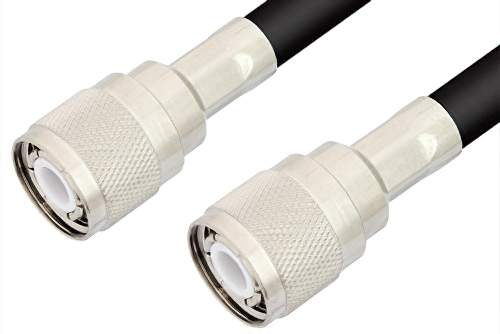

HN Male to HN Male Cable Using RG214 Coax

Image Views:  HN Male to HN Male Cable Using RG214 Coax high resolution
Zoom


Click for:PE3095 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1HN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2HN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG214/U
RF Cable TypeRG214
RF Cable Impedance50


HN Male to HN Male Cable Using RG214 Coax

PE3095 is a HN male to HN male cable using RG214 coax. This Pasternack HN male to HN male cable assembly uses a 50 Ohm HN for connector 1 and a 50 Ohm HN for connector 2.

Our male HN to male HN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3095 HN male to HN male cable assembly is constructed with RG214 coax and the maximum VSWR is 1.4:1.
