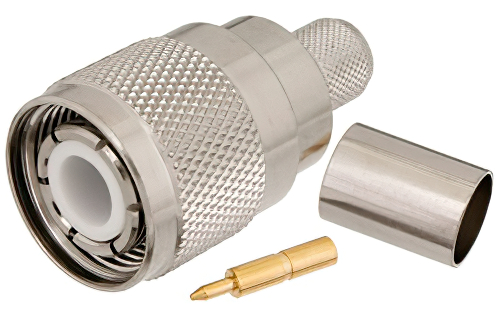

HN Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

Product ID: PE4474
HN Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

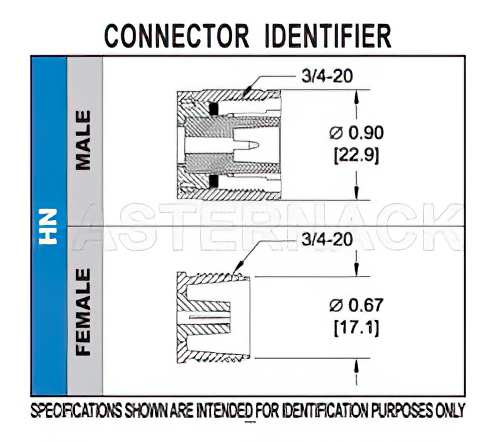

Image Views:  HN Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 high resolution
Zoomalternate image
View 2


Click for:PE4474 Datasheet
Click for:PE4474 RoHS Cert
Click for:PE4474 REACH Cert
Available Quantity: 2,808
Pricing Table
QUANTITYPRICE
1-24$41.15
25-49$39.09
50-99$37.04
100-249$35.39
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesHN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz


HN Male Connector Crimp/Solder Attachment For RG214, RG9, RG225, RG393

PE4474 HN male coaxial connector has an interface type of RG214, RG9, RG225, RG393 and a 50 Ohm impedance. Pasternack HN male connector uses shield/contact crimp/solder as an attachment method. Our male HN coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack HN male coaxial connector has a teflon dielectric type and a VSWR of 1.35. The Pasternack HN coaxial connector has a brass body with nickel plating. Our PE4474 HN connector uses brass contact. This HN male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male HN connector will ship the same day as purchased. Our HN male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom HN connector cable assemblies that will ship the same day as well.
