HN Male Straight Connectors

Check out our new RF calculators & conversion tools...

HN Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195

Product ID: PE4198
HN Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195

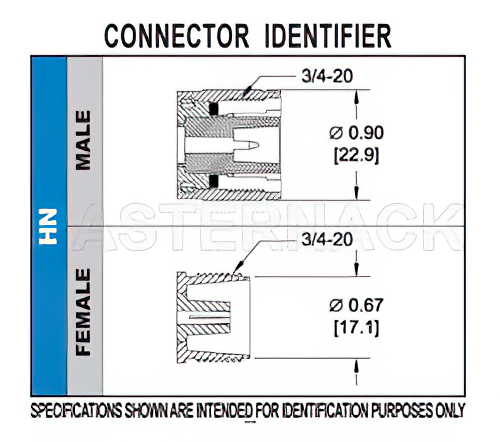

Image Views:  HN Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 high resolution
Zoomalternate image
View 2


Click for:PE4198 Datasheet
Click for:PE4198 RoHS Cert
Click for:PE4198 REACH Cert
Available Quantity: 784
Pricing Table
QUANTITYPRICE
1-24$35.21
25-49$33.45
50-99$31.69
100-249$30.28
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesHN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency10 GHz


HN Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400

PE4198 HN male coaxial connector has an interface type of RG58, RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack HN male connector uses shield/contact clamp/solder as an attachment method. Our male HN coaxial connector provides a minimum frequency of DC and a maximum frequency of 10 GHz.

The Pasternack HN male coaxial connector has a teflon dielectric type. The Pasternack HN coaxial connector has a brass body with nickel plating. Our PE4198 HN connector uses brass contact. This HN male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male HN connector will ship the same day as purchased. Our HN male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom HN connector cable assemblies that will ship the same day as well.
