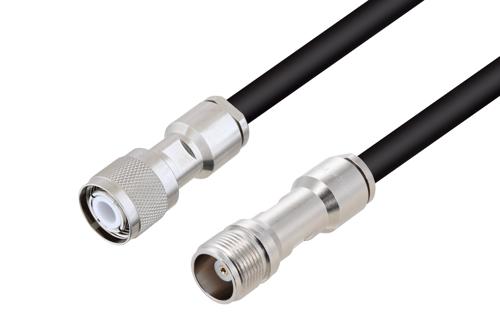

Radio frequency assembly HN male to HN female cable using RG214 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The HN male to HN female cable using RG214 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom HN to HN cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a HN cable connection on one end and a HN cable connection on the other. Our HN to HN cable assembly has a male gender on end 1 and a female on end 2. PE3W10956 can also be known as a HN plug to HN jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.6-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W10956 RF cable has a PVC jacket of 0.425-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -20 to 80 degrees C. The flexible RF cable has an in-series connection. Our HN male to HN female cable has a maximum VSWR of 1.4:1.
HN plug to HN jack cable assembly PE3W10956 is built with RG214 which is a flexible coax type. The Pasternack flexible HN cable assembly is manufactured with HN to HN cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a clamp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W10956 can also be used in the other direction and will be a HN female to HN male cable assembly if the opposite connectivity is required.
HN plug to HN jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality HN to HN cable assembly for quick shipment worldwide. Variations of HN cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal HN to HN RF cable assembly as per your requirements.
