90 Degree SMA Hybrid Coupler From 7.5 GHz to 16 GHz Rated to 40 Watts

Product ID: PE2056

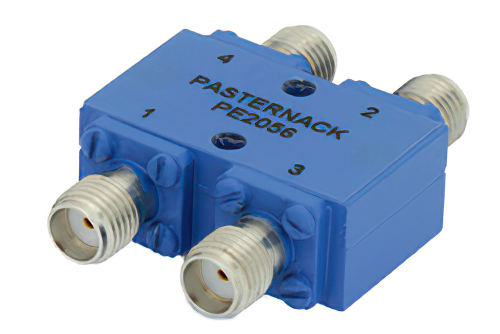

90 Degree SMA Hybrid Coupler From 7.5 GHz to 16 GHz Rated to 40 Watts

Image Views:  90 Degree SMA Hybrid Coupler From 7.5 GHz to 16 GHz Rated to 40 Watts high resolution
Zoom


Click for:PE2056 Datasheet
Click for:PE2056 RoHS Cert
Click for:PE2056 REACH Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-24$496.70
25-49$461.93
50-99$427.16
100-249$397.36
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details) .
Connector SeriesSMA
Connector GenderFemale
DesignHybrid
Minimum Frequency7.5 GHz
Maximum Frequency16 GHz
Maximum Input Power40 Watt
Coupling Value3 dB
