Limited Detent SMP Male Bulkhead to Reverse Polarity TNC Jack Bulkhead Cable Using PE-SR405FLJ Coax

Product ID: PE3C5561

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	SMP
Connector 1 Gender	Male
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector 1 Impedance	50 Ohm
Connector 2 Series	TNC
Connector 2 Gender	Jack
Connector 2 Polarity	Reverse Polarity
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Gold
RF Cable Part Number	PE-SR405FLJ
RF Cable Type	PE-SR405FLJ
RF Cable Impedance	50 Ohm

Description

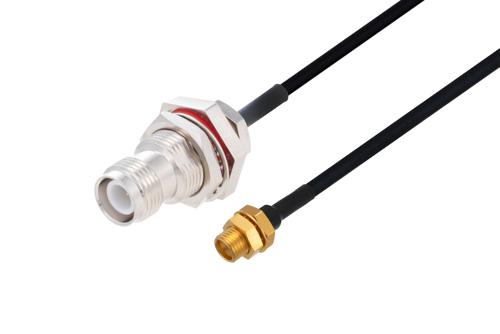

Limited Detent SMP Male Bulkhead to Reverse Polarity TNC Jack Bulkhead Cable Using PE-SR405FLJ Coax

Radio frequency assembly limited detent SMP male bulkhead to reverse polarity TNC jack bulkhead cable using PE-SR405FLJ coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The Limited detent SMP male bulkhead to reverse polarity TNC jack bulkhead cable using PE-SR405FLJ coax, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom SMP to TNC cable assembly orders will ship same business day as well.

Pasternack RF coax cable assembly is built with SMP bulkhead cable connection on one end and reverse polarity TNC bulkhead cable connection on the other. Our SMP to reverse polarity TNC cable assembly has male gender on end 1 and jack on end 2. PE3C5561 can also be known as a SMP plug to reverse polarity TNC female cable assembly and will be shipped same-day as it is purchased. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PTFE dielectric type.

This cable assembly employs durable and flexible materials, and with a 0.787 inches bend radius can withstand repetitive movements, ensuring reliable performance over extended periods.

SMP plug to reverse polarity TNC female cable assembly PE3C5561 is built with PE-SR405FLJ which is a formable coax type. The Pasternack formable SMP cable assembly is manufactured with SMP to TNC cable connectors, has a 50 Ohm impedance and is single shielded. One connector features the solder/solder attachment method and a brass body with gold plating, while the other has clamp/solder attachment method and brass body with nickel plating.Additional dimensions, specifications and CAD drawings for this PE3C5561 RF cable are available on our downloadable PDF datasheet.PE3C5561 can also be used in the other direction and will be reverse polarity TNC jack bulkhead to SMP male bulkhead cable assembly if the opposite connectivity is required.

SMP plug bulkhead to TNC reverse polarity female bulkhead cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMP to TNC cable assembly for quick shipment worldwide. Variations of SMP cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured.For further information on similar products, our expert technical support and trained sales team can get you the ideal SMP RF cable assembly as per your requirements.
