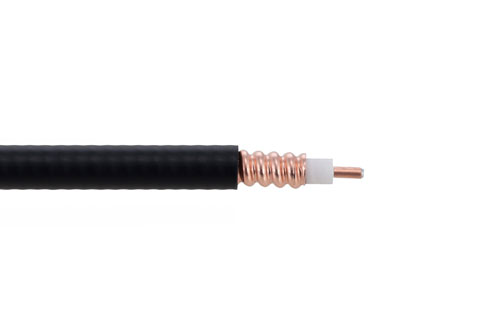

Low Loss SPO-250 Rated Corrugated Coax Cable with Black PE Jacket Superflexible Outdoor Rated

Name: Low Loss SPO-250 Rated Corrugated Coax Cable with Black PE Jacket Superflexible Outdoor Rated
Brand: Pasternack
SKU: SPO-250-BULK
Availability: InStock

Product ID: SPO-250-BULK

Pricing

Quantity (Feet)	Price
1-24	$3.18

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 945

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	SPO-250
Flex Type	Corrugated
Impedance	50 Ohm
Dielectric Type	Foam PE
Velocity of Propagation	83 %
Jacket Diameter	0.303 in
Jacket Material	PE
No. of Shields	1
Passive Intermodulation	-160 dBc
Frequency, Max	6 GHz
Max Operating Temperature	85 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	1.25 in
Coax Type	Coax

Description

Low Loss SPO-250 Rated Corrugated Coax Cable with Black PE Jacket Superflexible Outdoor Rated

SPO-250-BULK part number from Pasternack is a SPO-250 coax cable that is corrugated. Pasternack SPO-250 corrugated coax cable is 50 Ohm and has a Foam PE dielectric. Our SPO-250 coax is constructed with a 0.303 jacket made of PE. SPO-250 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 6 GHz.

Pasternack SPO-250 coax cables are part of over 40,000 RF, microwave and millimeter wave components. SPO-250 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using SPO-250 or other coax can be built and shipped same day as well.
