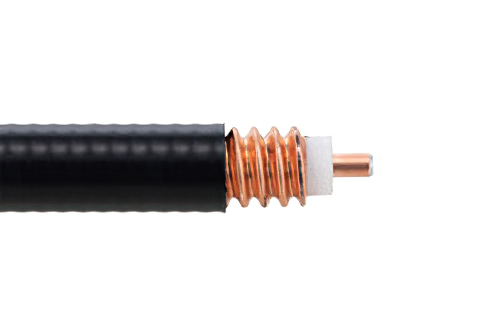

Low Loss SPO-500 Rated Corrugated Coax Cable with Black PE Jacket Superflexible Outdoor Rated
Product ID:
SPO-500
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | SPO-500 |
| Flex Type | Corrugated |
| Impedance | 50 Ohm |
| Dielectric Type | Foam PE |
| Velocity of Propagation | 83 % |
| Jacket Diameter | 0.53 in |
| Jacket Material | PE |
| No. of Shields | 1 |
| Passive Intermodulation | -158 dBc |
| Frequency, Max | 6 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 2.25 in |
| Coax Type | Coax |
Description
Low Loss SPO-500 Rated Corrugated Coax Cable with Black PE Jacket Superflexible Outdoor Rated
SPO-500 part number from Pasternack is a SPO-500 coax cable that is corrugated. Pasternack SPO-500 corrugated coax cable is 50 Ohm and has a Foam PE dielectric. Our SPO-500 coax is constructed with a 0.53 jacket made of PE. SPO-500 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 6 GHz.
Pasternack SPO-500 coax cables are part of over 40,000 RF, microwave and millimeter wave components. SPO-500 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using SPO-500 or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
