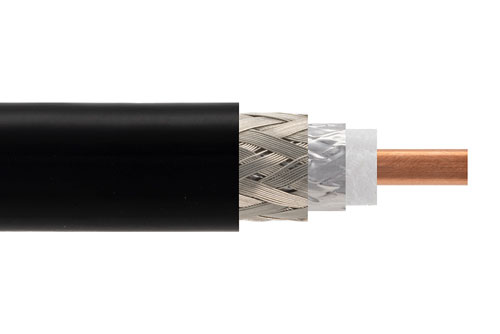

Low Loss Flexible LMR-400-FR Outdoor Rated Coax Cable Double Shielded with Black FRPE Jacket Fire Rated

Name: Low Loss Flexible LMR-400-FR Outdoor Rated Coax Cable Double Shielded with Black FRPE Jacket Fire Rated
Brand: Pasternack
SKU: LMR-400-FR-BULK
Availability: InStock

Product ID: LMR-400-FR-BULK

Pricing

Quantity (Feet)

Price: $2.87

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 615

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	LMR-400-FR
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	Foam PE
Velocity of Propagation	84 %
Jacket Diameter	0.405 in
Jacket Material	FRPE
No. of Shields	2
Attenuation at 1 Ghz.	4.1 dB
RF Shielding	90 dB
Frequency, Max	6 GHz
Max Operating Temperature	85 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	1 in
Minimum Bend Radius, Repeated	4 in
Coax Type	Coax

Description

LMR-400-FR Fire Rated version of the 400 series Low Loss Coax

LMR-400-FR-BULK part number from Pasternack is a LMR-400-FR coax cable that is flexible. Pasternack LMR-400-FR flexible coax cable is 50 Ohm and has a Foam PE dielectric. Our LMR-400-FR coax is constructed with a 0.405 jacket made of FRPE. LMR-400-FR coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 6 GHz. LMR-400-FR coax cable has an attenuation at 1 GHz of 4.1 dB.

Pasternack LMR-400-FR coax cables are part of over 40,000 RF, microwave and millimeter wave components. LMR-400-FR cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using LMR-400-FR or other coax can be built and shipped same day as well.

* LMR™ is a trademark of Times Microwave Systems.
