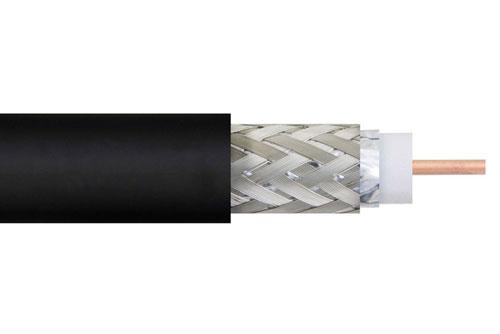

The LMR-200-FR-BULK part number from Pasternack is a LMR-200-FR low-loss coax cable that is flexible. Pasternack’s flexible coax RF cable has an impedance of 50 Ohms and a PE dielectric. Our LMR-200-FR coax cable is constructed with a 0.195-inch jacket made of FRPE. This RF coaxial cable is ideal for laboratory applications and general purpose rf interconnect applications. This coaxial cable has a dielectric withstanding voltage of 1,000 Vdc. This black-colored low-loss coax cable has a nominal capacitance of 24.5 pF/ft.
This LMR-200-FR flexible RF cable has a shield count of 2 and RF shielding of 90 dB. Our coax cable from Pasternack has a maximum frequency of 8 GHz. Additional specifications for this LMR-200-FR-BULK double-shielded RF coaxial cable are on our downloadable PDF datasheet above. This low-loss RF cable has a one-time minimum bend radius of 0.5 inches and a repeat minimum bend radius of 2 inches. Our low-loss 50 Ohms flexible cable has a peak power rating of 2,500 watts.
Our LMR-200-FR coax cable can operate at temperatures ranging from -40 to +85 degrees C. The black-colored coax cable has a typical insertion loss/attenuation of 2.3, 4, 4.8, 7, 9.9, 14.2, 16.9 and 26.4 dB/100ft at frequency of 50 MHz, 150 MHz, 220 MHz, 450 MHz, 900 MHz, 1.8 GHz, 2.5 GHz and 5.8 GHz respectively. The LMR-200-FR-BULK flexible RF cable has a solid copper center conductor. This fire-rated coaxial cable features a dual shield of tinned copper braid over the aluminum tape.
Pasternack LMR-200-FR low-loss coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using LMR-200-FR or other coax can be built and shipped the same business day as well.
LMR® is a registered trademark of Times Microwave Systems.
