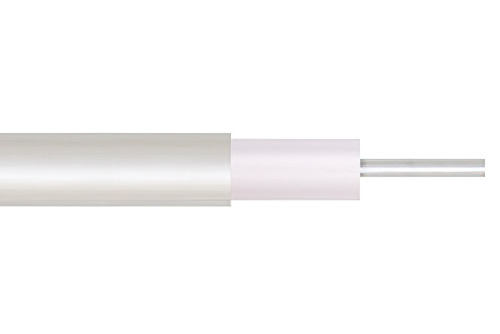

Low Loss .047 Semi-Rigid Coax Cable, Tin Plated Copper Outer Conductor, Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections
Product ID:
PECX002
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | .047 Semi-rigid |
| Flex Type | Semi-Rigid |
| Impedance | 50 Ohm |
| Dielectric Type | Microporous PTFE |
| Velocity of Propagation | 76.5 % |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 30 dB |
| Power, Max at 1 Ghz. | 101 Watts |
| Frequency, Max | 115 GHz |
| Max Operating Temperature | 225 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.125 in |
| Coax Type | Coax |
Description
Low Loss .047 Semi-Rigid Coax Cable, Tin Plated Copper Outer Conductor, Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections
PECX002 part number from Pasternack is a .047 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR047TNLL semi-rigid coax cable is 50 Ohm and has a Microporous PTFE dielectric. PE-SR047TNLL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 115 GHz. PE-SR047TNLL coax cable has an attenuation at 1 GHz of 30 dB and a maximum power of 101 watts at 1 GHz.
Pasternack .047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR047TNLL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR047TNLL or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
