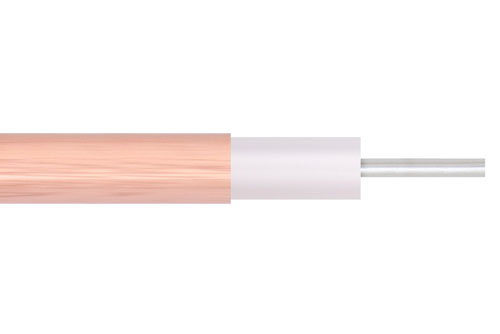

Low Loss .070 Semi-Rigid Coax Cable, Copper Outer Conductor, Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections

Name: Low Loss .070 Semi-Rigid Coax Cable, Copper Outer Conductor, Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections
Brand: Pasternack
SKU: PECX003-BULK
Availability: InStock

Product ID: PECX003-BULK

Pricing

Quantity (Feet)	Price
1-24	$32.99
25-49	$31.34
50-99	$29.69
100-249	$28.37
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 220

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	.070 Semi-rigid
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	Microporous PTFE
Velocity of Propagation	76.5 %
No. of Shields	1
Attenuation at 1 Ghz.	20 dB
Power, Max at 1 Ghz.	188 Watts
Frequency, Max	72 GHz
Max Operating Temperature	250 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.25 in
Coax Type	Coax

Description

Low Loss .070 Semi-Rigid Coax Cable, Copper Outer Conductor, Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections

PECX003-BULK part number from Pasternack is a .070 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR070LL semi-rigid coax cable is 50 Ohm and has a Microporous PTFE dielectric. PE-SR070LL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 72 GHz. PE-SR070LL coax cable has an attenuation at 1 GHz of 20 dB and a maximum power of 188 watts at 1 GHz.

Pasternack .070 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR070LL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR070LL or other coax can be built and shipped same day as well.
