M39029 Socket Size 12 D38999 Contact for 0.085 Cable
Product ID:
PEMACTRF12S03
Pricing
| Quantity | Price |
| 1-24 | $39.19 |
| 25-49 | $37.23 |
| 50-99 | $35.27 |
| 100-249 | $33.70 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 17
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications |
| MIL Specifications |
M39029/103 |
| Contact Size |
12 |
| Contact Series |
M39029 |
| Contact Gender |
Socket |
| Max Frequency |
3 GHz |
| VSWR |
1.35:1 |
| Attachment |
Crimp/Solder |
| MIL-STD Types |
D38999 Series I, D38999 Series III and D38999 Series IV |
Description

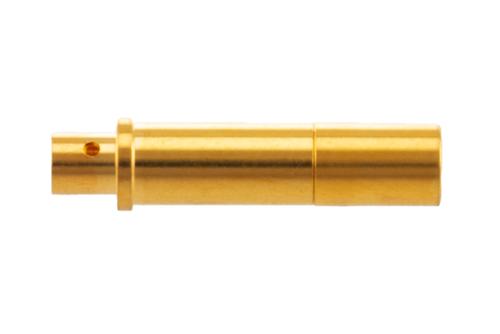

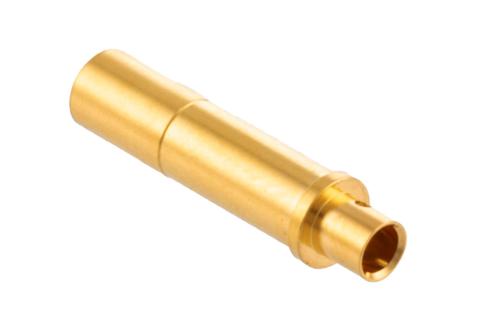

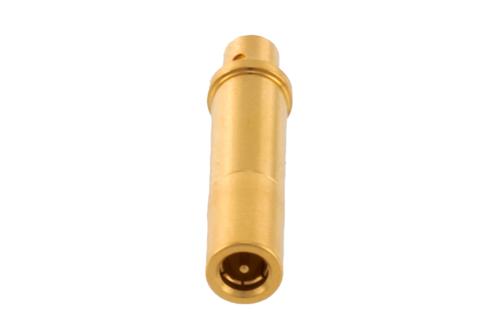

M39029 Socket Size 12 D38999 Contact for 0.085 Cable
The PEMACTRF12S03 from Pasternack is a size 12 M39029 socket contact that is designed for D38999 Series I, D38999 Series III, and D38999 Series IV military type connector shells. This RF coaxial contact has a crimp/solder contact attachment method and is built to offer superior performance in demanding applications that require high-frequency data transmission. The M39029 coax contact comes with an impedance of 50 Ohms and a maximum VSWR of 1.35.
Our RF contact has a maximum frequency of 3 GHz. This M39029 RF contact is made up of brass material with gold plating. The PEMACTRF12S03 coax contact has a PTFE dielectric type and a dielectric withstanding voltage of 1000 Vrms. Our M39029 socket contact has a maximum insertion loss of 0.191 dB.
Pasternack’s RF contact has an inner conductor and outer conductor made of beryllium copper. These RF coax contacts are specifically engineered to minimize signal loss and crosstalk, providing excellent impedance matching and reducing VSWR. Our M39029 socket contact can operate at temperatures ranging from -65 to 125 degrees C.
PEMACTRF12S03 RF contact is part of more than one million RF, microwave, and millimeter wave parts in stock at Pasternack. This PEMACTRF12S03 coax contact is ready to buy and can be shipped worldwide the same business day as ordered from our warehouse in the United States. Pasternack maintains M39029 socket RF contacts in various sizes and configurations, which allows them to be customized to meet the specific requirements of different applications. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF contact as per your requirements.
Features
- Fits any MIL-DTL-38999 size 12 insert
- Superior high frequency performance
- Blindmate connections
- Made from high quality materials giving a robust mechanical design
- Solderless inner connection to reduce assembly cost
Applications
- Civilian and Military Aerospace
- High Reliability Installations
- Harsh Environments
