MC-Card Plug to MC-Card Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

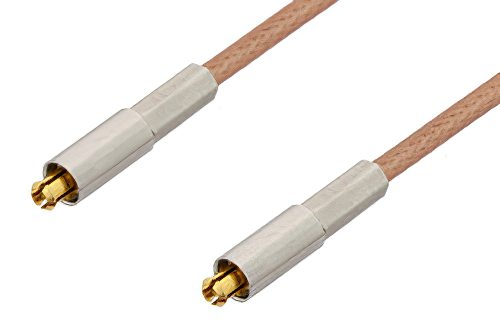

MC-Card Plug to MC-Card Plug Cable Using RG178 Coax, RoHS

Product ID: PE36116LF
MC-Card Plug to MC-Card Plug Cable Using RG178 Coax, RoHS

Image Views:  MC-Card Plug to MC-Card Plug Cable Using RG178 Coax, RoHS high resolution
Zoom


Click for:PE36116LF Datasheet
Click for:PE36116LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MC-Card
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2MC-Card
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50


MC-Card Plug to MC-Card Plug Cable Using RG178 Coax, RoHS

PE36116LF is a MC-Card plug to MC-Card plug cable using RG178 coax. This Pasternack MC-Card plug to MC-Card plug cable assembly uses a 50 Ohm MC-Card for connector 1 and a 50 Ohm MC-Card for connector 2.

Our plug MC-Card to plug MC-Card cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36116LF MC-Card plug to MC-Card plug cable assembly is constructed with RG178 coax.
