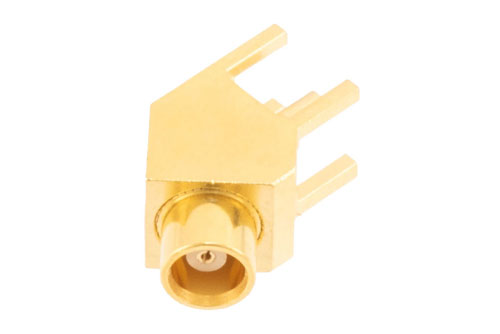

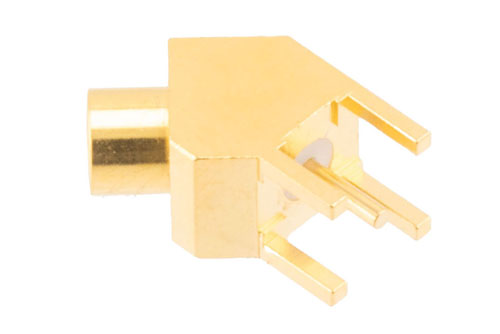

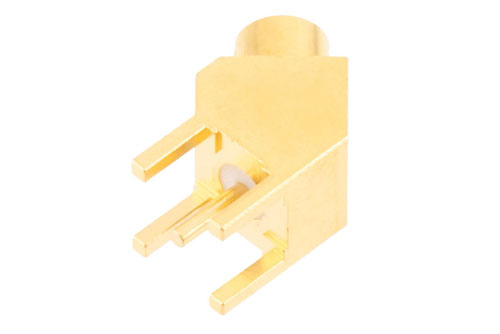

PE46000 MCX female 45 degree PCB RF connector has an impedance of 50 Ohm. Our female MCX 45 degree connector provides a maximum frequency of 6 GHz. This MCX female RF connector is stocked to be readily available for same business day shipment.
The Pasternack 45 degree MCX female PCB connector has a teflon dielectric type and a VSWR of 1.2:1. Pasternack's MCX connector has a brass body with gold over nickel over copper plating. Our PE46000 MCX 45 degree connector uses agold over nickel over copper-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. The PE46000 MCX PCB connector operates at a temperature range of -55 to 155 deg C. The Pasternack MCX female connector has a dielectric withstanding voltage of 750 Vrms.
This Pasternack 45 degree female MCX PCB connector will ship the same business day as purchased. Our PCB MCX 45 degree female connector is part of RF, microwave and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
