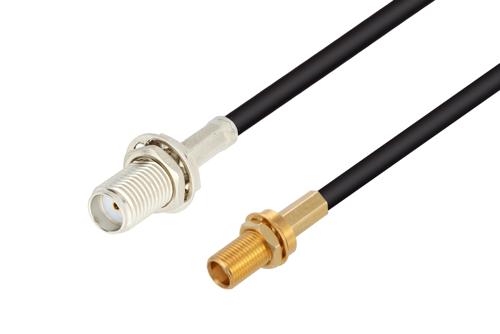

Radio frequency assembly MCX jack bulkhead to SMA female bulkhead cable using RG174 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MCX jack bulkhead to SMA female bulkhead cable using RG174 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MCX to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a MCX bulkhead cable connection on one end and a SMA bulkhead cable connection on the other. Our MCX to SMA cable assembly has a jack gender on end 1 and a female on end 2. PE3C5774 can also be known as a MCX female to SMA jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE3C5774 RF cable has a PVC jacket of 0.110-inch diameter. The flexible RF cable has a between series connection.
MCX female to SMA jack cable assembly PE3C5774 is built with RG174 which is a flexible coax type. The Pasternack flexible MCX cable assembly is manufactured with MCX to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C5774 can also be used in the other direction and will be a SMA female bulkhead to MCX jack bulkhead cable assembly if the opposite connectivity is required.
MCX female bulkhead to SMA jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MCX to SMA cable assembly for quick shipment worldwide. Variations of MCX and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MCX to SMA RF cable assembly as per your requirements.
