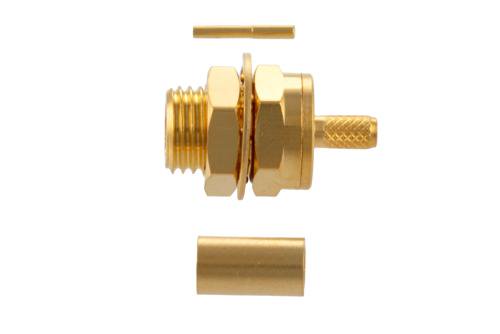

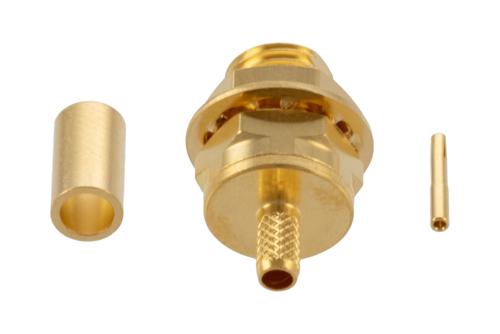

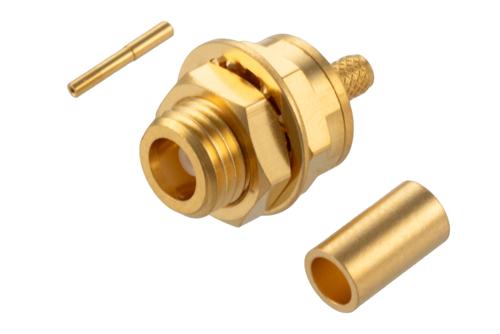

PE517878 MCX jack bulkhead coaxial connector has an interface type of MCX jack, which is compatible with LMR®-100A, PE-B100, PE-C100, RG174, RG174NM, RG316, RG188, PE-C100-LSZH and LMR®-100-FR cables, and has an impedance of 50 Ohms. Pasternack’s MCX jack bulkhead connector uses crimp/solder as an attachment method. Our jack MCX coaxial connector provides a maximum frequency of 6 GHz. This MCX jack RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack MCX jack bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s MCX coaxial connector has a brass body with gold over nickel over copper plating. Our PE517878 MCX connector uses a gold over nickel over copper-plated phosphor bronze contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms, respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE517878 MCX bulkhead connector operates at a temperature range of -55 to 155 deg C. This MCX connector has a gold over nickel over copper inner contact plating. The Pasternack MCX jack connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our MCX jack connector has a length of 0.575 inches, a width of 0.315 inches, and a weight of 0.007 lbs. This radio frequency coaxial connector comes with a gold over nickel over copper plated brass washer.
This Pasternack jack MCX bulkhead connector will ship the same business day as purchased. Our bulkhead MCX jack coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
