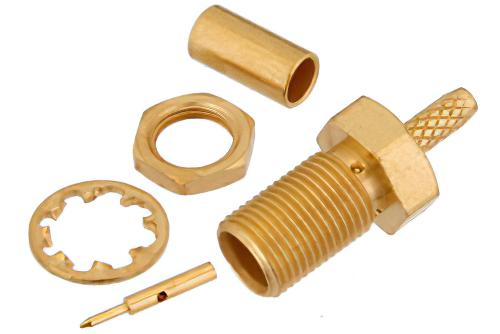

RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole

Product ID: PE44374
RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole


Image Views:  RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE44374 Datasheet
Available Quantity: 80
Pricing Table
QUANTITYPRICE
1-24$28.69
25-49$26.68
50-99$24.67
100-249$22.95
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Polarity
Connector SeriesMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency6 GHz


RP MCX Jack Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole

PE44374 reverse polarity MCX jack bulkhead coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack reverse polarity MCX jack bulkhead connector uses shield/contact crimp/solder as an attachment method. Our reverse polarity jack MCX coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack reverse polarity MCX jack bulkhead coaxial connector has a teflon dielectric type and a VSWR of 1.41. The Pasternack MCX coaxial connector has a brass body with gold plating. Our PE44374 reverse polarity MCX connector uses brass contact. This reverse polarity MCX jack bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack reverse polarity jack MCX bulkhead connector will ship the same day as purchased. Our bulkhead MCX reverse polarity jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
