RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole

Product ID: PE44377
RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole

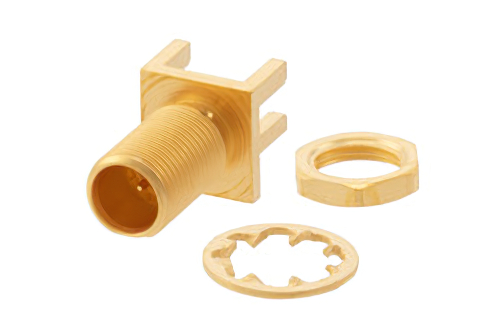

Image Views:  RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole high resolution
Zoomalternate image

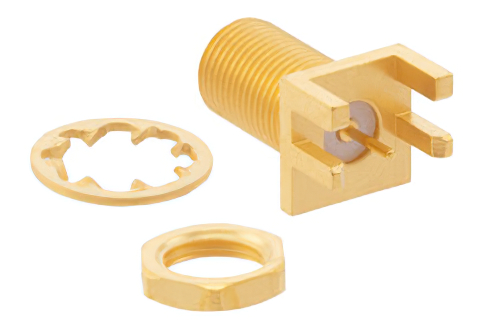

View 2


Click for:PE44377 Datasheet
Available Quantity: 230
Pricing Table
QUANTITYPRICE
1-24$26.87
25-49$24.99
50-99$23.11
100-249$21.50
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Polarity
Connector SeriesMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency6 GHz


RP MCX Jack Bulkhead Connector Solder Attachment End Launch PCB, .177 inch D Hole

PE44377 reverse polarity MCX jack bulkhead pcb connector has an interface type of end launch and a 50 Ohm impedance. Pasternack reverse polarity MCX jack bulkhead connector uses shield/contact solder as an attachment method. Our reverse polarity jack MCX pcb connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack reverse polarity MCX jack bulkhead pcb connector has a teflon dielectric type. The Pasternack MCX pcb connector has a brass body with gold plating. Our PE44377 reverse polarity MCX connector uses brass contact. This reverse polarity MCX jack bulkhead pcb RF connector is RoHS and REACH compliant.

This Pasternack reverse polarity jack MCX bulkhead connector will ship the same day as purchased. Our bulkhead MCX reverse polarity jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
