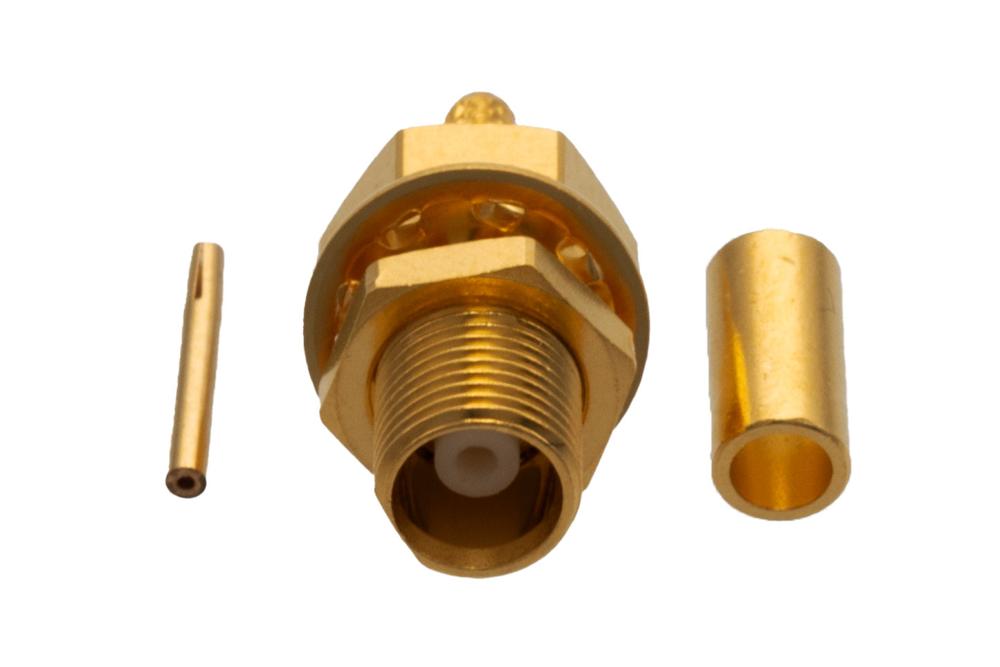

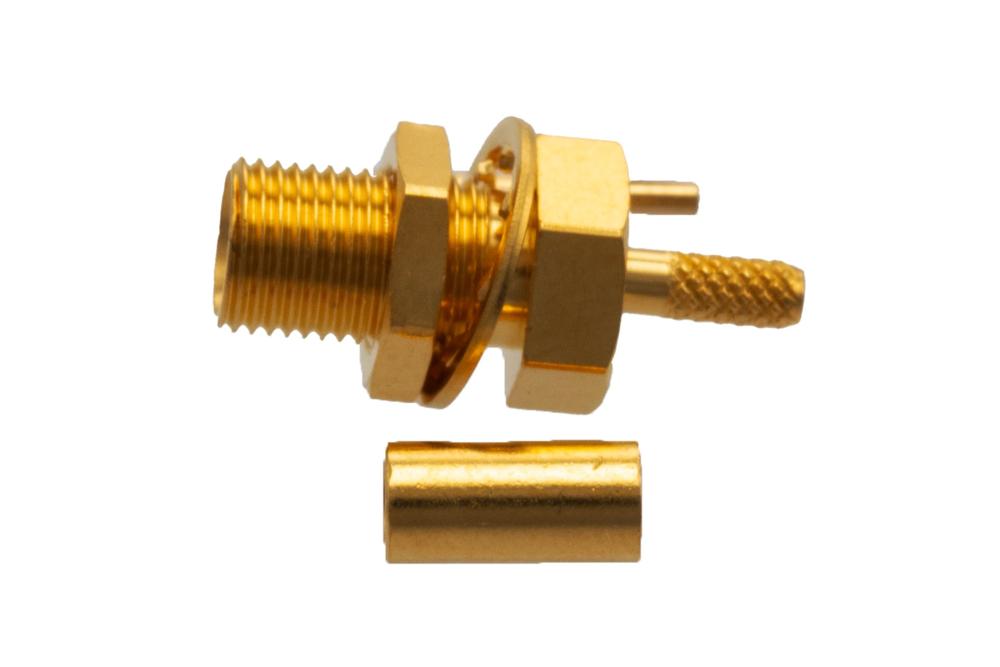

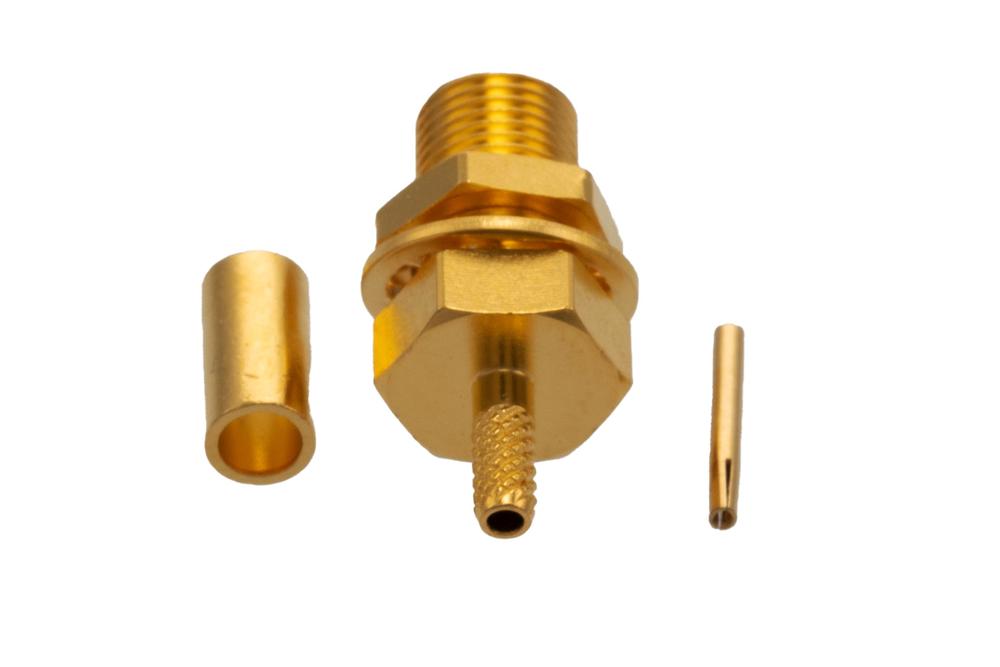

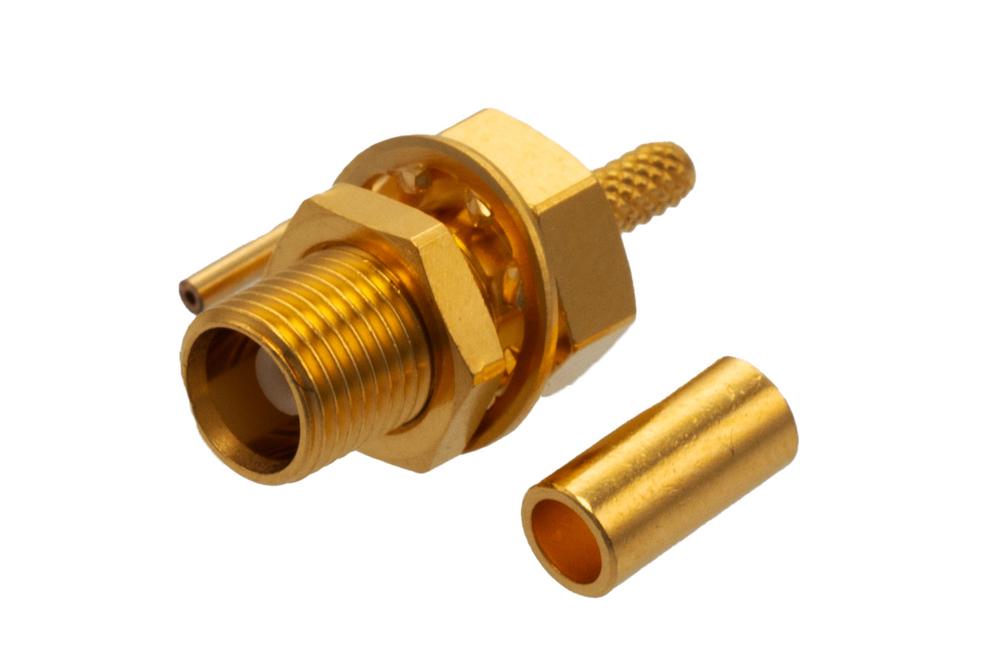

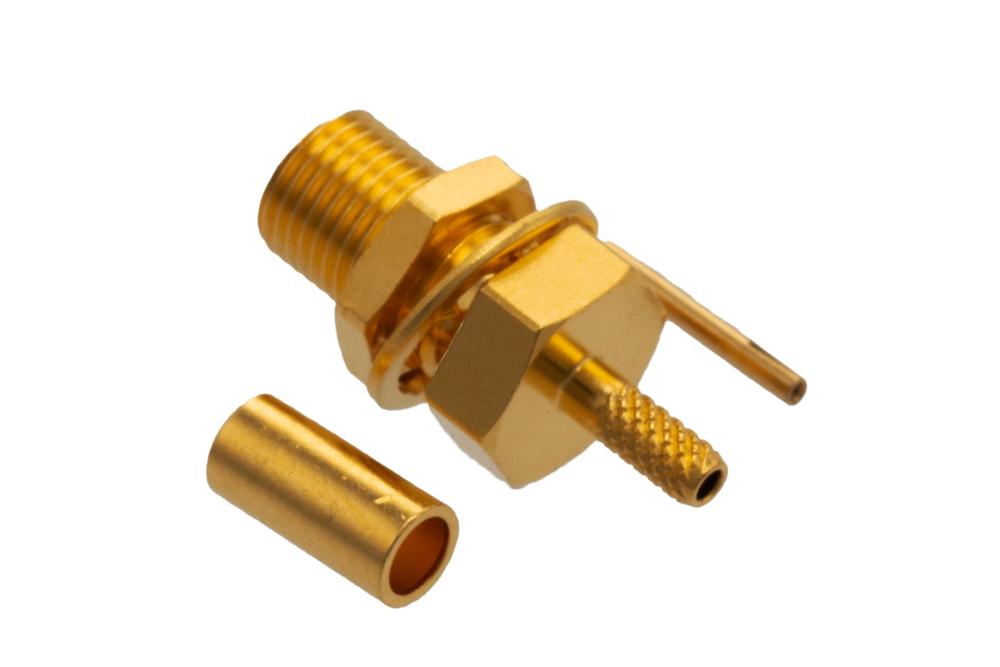

PE910033 MCX jack bulkhead coaxial connector has an interface type of MCX jack which is compatible with RG178 and RG196 cables and has an impedance of 50 Ohms. Pasternack’s MCX jack bulkhead connector uses crimp/solder as an attachment method. Our jack MCX coaxial connector provides a maximum frequency of 6 GHz. This MCX jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack MCX jack bulkhead coaxial connector has a teflon dielectric type and a VSWR of 1.4:1. Pasternack’s MCX coaxial connector has a brass body with gold over nickel over copper plating. Our PE910033 MCX connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE910033 MCX bulkhead connector operates at a temperature range of -55 to 155 deg C. This jack MCX coaxial RF connector has a maximum insertion loss of 0.529 dB. This MCX connector has a gold over nickel over copper inner contact plating. The Pasternack MCX jack connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our MCX jack connector has a length of 0.591 inches, a width of 0.25 inches, and a weight of 0.01 lbs.
This Pasternack jack MCX bulkhead connector will ship the same business day as purchased. Our bulkhead MCX jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
