MCX Jack Straight Connectors

Check out our new RF calculators & conversion tools...

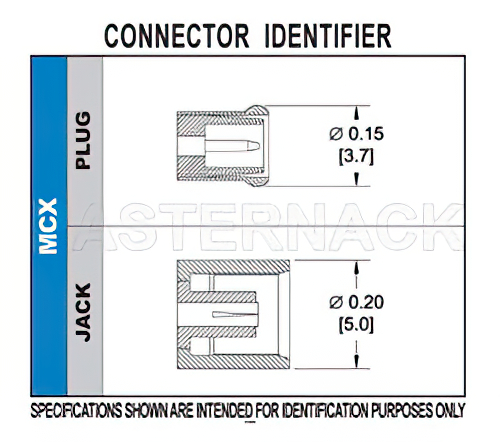

MCX Jack Connector Crimp/Solder Attachment for RG178, RG196

Product ID: PE4884
MCX Jack Connector Crimp/Solder Attachment for RG178, RG196


Image Views:  MCX Jack Connector Crimp/Solder Attachment for RG178, RG196 high resolution
Zoomalternate image
View 2


Click for:PE4884 Datasheet
Click for:PE4884 RoHS Cert
Available Quantity: 218
Pricing Table
QUANTITYPRICE
1-24$29.27
25-49$27.81
50-99$26.34
100-249$25.17
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


MCX Jack Connector Crimp/Solder Attachment for RG178, RG196

PE4884 MCX jack coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack MCX jack connector uses shield/contact crimp/solder as an attachment method. Our jack MCX coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack MCX jack coaxial connector has a ptfe dielectric type. The Pasternack MCX coaxial connector has a brass body with gold plating. Our PE4884 MCX connector uses beryllium copper contact. This MCX jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack MCX connector will ship the same day as purchased. Our MCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
