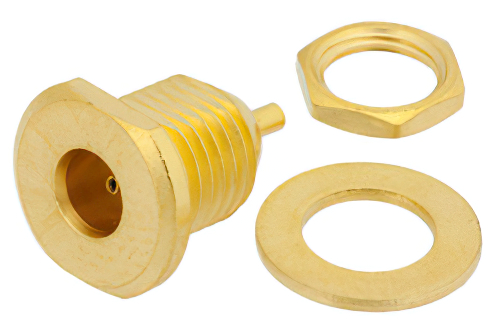

75 Ohm MCX Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .235 inch D Hole
Product ID:
PE44306
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Polarity | Standard |
Connector Series | MCX |
Connector Gender | Jack |
Impedance | 75 Ohm |
Body Style | Straight |
Attachment Method | Solder |
Mount Method | Bulkhead |
Minimum Frequency | DC |
Maximum Frequency | 6 GHz |
Interface Type 1 | Solder Cup |
Description
75 Ohm MCX Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .235 inch D Hole
PE44306 MCX jack bulkhead terminal connector has an interface type of solder cup and a 75 Ohm impedance. Pasternack MCX jack bulkhead connector uses shield/contact solder as an attachment method. Our jack MCX terminal connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.
The Pasternack MCX jack bulkhead terminal connector has a PTFE dielectric type. The Pasternack MCX terminal connector has a brass body with gold over nickel plating. Our PE44306 MCX connector uses beryllium copper contact. This MCX jack bulkhead terminal RF connector is REACH compliant.
This Pasternack jack MCX bulkhead connector will ship the same day as purchased. Our bulkhead MCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
