MCX Jack Straight Connectors

Check out our new RF calculators & conversion tools...

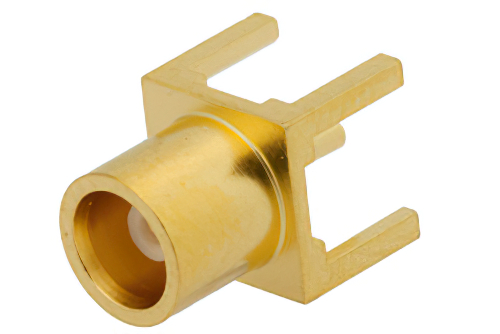

MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing

Product ID: PE4555
MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing


Image Views:  MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing high resolution
Zoomalternate image
View 2


Click for:PE4555 Datasheet
Click for:PE4555 RoHS Cert
Available Quantity: 1,021
Pricing Table
QUANTITYPRICE
1-24$11.12
25-49$10.34
50-99$9.56
100-249$8.90
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone


MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing

PE4555 MCX jack pcb connector has an interface type of thru hole and a 50 Ohm impedance. Pasternack MCX jack connector uses shield/contact solder as an attachment method.

The Pasternack MCX jack pcb connector has a ptfe dielectric type. The Pasternack MCX pcb connector has a brass body with gold plating. This MCX jack pcb RF connector is RoHS and REACH compliant.

This Pasternack jack MCX connector will ship the same day as purchased. Our MCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
