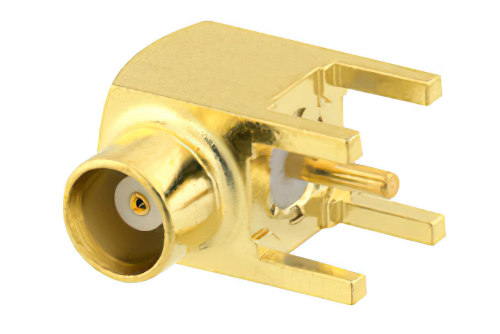

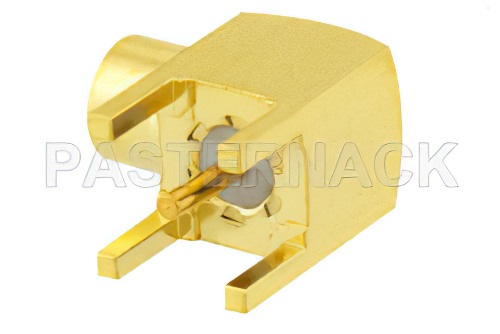

PE45274 MCX jack right angle PCB RF connector has an impedance of 50 Ohms. Pasternack’s MCX jack connector uses solder as an attachment method. Our jack MCX right angle PCB connector provides a maximum frequency of 6 GHz. Our high-quality radio frequency coaxial connector is used for general purpose tests and printed circuit board applications. This MCX jack RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack right angle MCX jack PCB connector has a teflon dielectric type. Pasternack’s MCX PCB connector has a brass body with gold plating. Our PE45274 MCX right angle connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE45274 RF connector features a 3µ in. minimum body plating specification. The PE45274 MCX connector operates at a temperature range of -55 to 155 deg C. This right angle MCX connector has a gold inner contact plating. The Pasternack MCX jack connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. Our right angle MCX jack connector has a length of 0.394 inches, a width of 0.236 inches, and a weight of 0.006 lbs.
This Pasternack right angle jack MCX connector will ship the same business day as purchased. Our MCX right angle jack PCB connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
