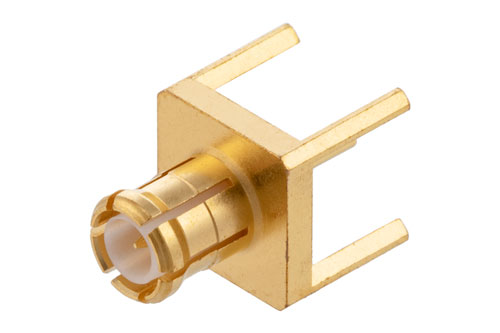

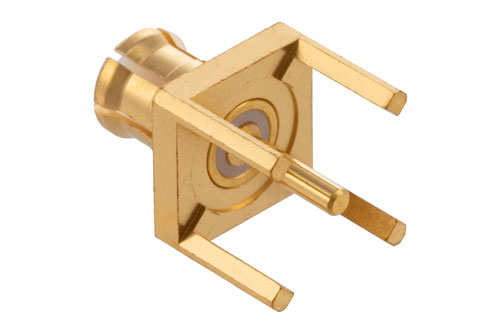

PE45871 MCX plug PCB coaxial connector has an interface type of MCX plug PCB and a 50 Ohm impedance. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack's MCX plug PCB connector uses solder as an attachment method. Our plug MCX coaxial connector provides a maximum frequency of 6 GHz. This MCX coaxial connector is stocked to be readily available for same business day shipment.
The Pasternack MCX plug PCB coaxial connector has a maximum VSWR of 1.08:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack's MCX coaxial connector has a beryllium copper body with gold over copper plating. Our PE45871 MCX connector uses gold over copper-plated bronze contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from beryllium copper material and has a contact life of 500 cycles or more. The PE45871 MCX PCB non-magnetic connector operates at a temperature range of -55 to 125 deg C. This push-on plug coaxial RF connector has a maximum insertion loss of 0.05 dB. The Pasternack non-magnetic MCX plug connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms.
This Pasternack non-magnetic plug MCX PCB connector will ship the same business day as purchased. Our PCB MCX plug connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
