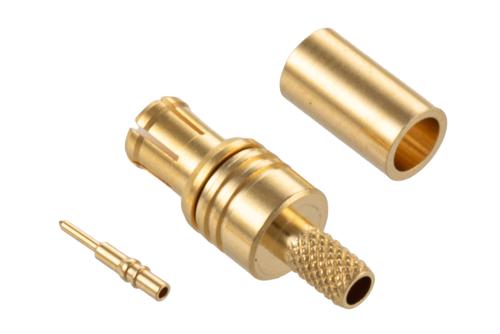

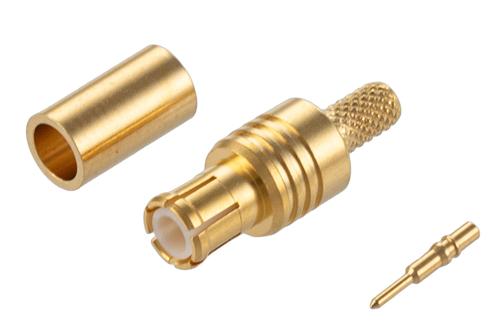

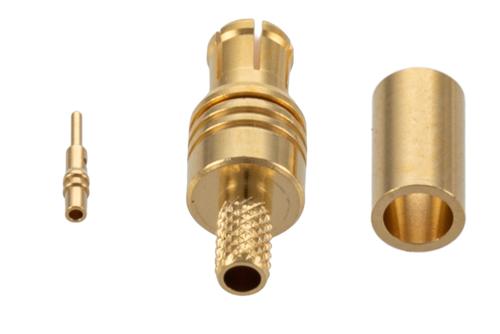

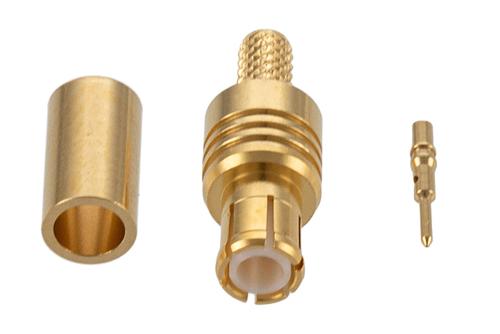

PE517805 MCX plug coaxial non-magnetic connector has an interface type of MCX plug, which is compatible with RG316, LMR®-100A, PE-B100, PE-C100, RG174, RG174MN, RG188, PE-C100-LSZH, LMR®-100-FR and LMR®-100A-PVC cables, and has an impedance of 50 Ohms. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack’s MCX plug connector uses crimp/solder as an attachment method. Our plug MCX coaxial connector provides a maximum frequency of 6 GHz. This MCX plug non-magnetic RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack MCX plug coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack’s MCX coaxial connector has a phosphor bronze body with gold over nickel over copper plating. Our PE517805 MCX connector uses a gold over nickel over copper-plated phosphor bronze contact. The Pasternack non-magnetic RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from phosphor bronze material has a contact life of 500 cycles or more. The PE517805 MCX non-magnetic connector operates at a temperature range of -55 to 155 deg C. This MCX connector has a gold over nickel over copper inner contact plating. The Pasternack non-magneticMCX plug connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our MCX plug connector has a length of 0.543 inches, a width of 0.197 inches, and a weight of 0.05 lbs.
This Pasternack non-magnetic plug MCX connector will ship the same business day as purchased. Our MCX plug coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
