High Power WR-102 Waveguide Terminations

Check out our new RF calculators & conversion tools...

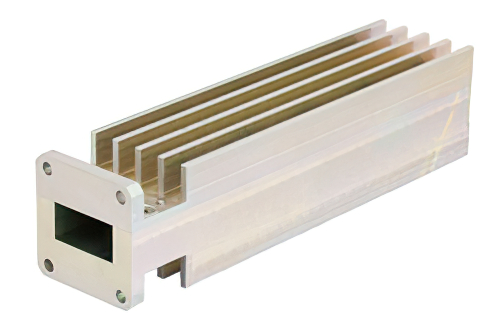

100 Watts High Power WR-102 Waveguide Load 7 GHz to 11 GHz, Aluminum

Product ID: PE6825
100 Watts High Power WR-102 Waveguide Load 7 GHz to 11 GHz, Aluminum


Image Views:  100 Watts High Power WR-102 Waveguide Load 7 GHz to 11 GHz, Aluminum high resolution
Zoomalternate image

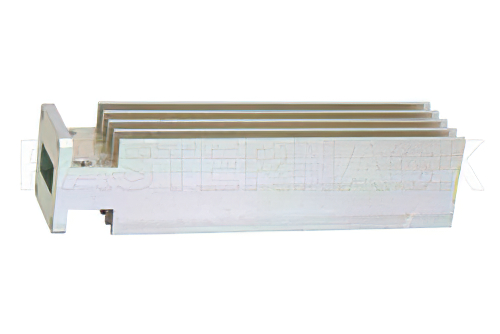

View 2


Click for:PE6825 Datasheet
Click for:PE6825 RoHS Cert
Click for:PE6825 REACH Cert
DISCONTINUED PRODUCT
Remaining Quantity Available: 10
Pricing Table
QUANTITYPRICE
1-24$1,428.32
25-49$1,328.34
50-99$1,228.36
100-249$1,142.66
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power100 Watt
Waveguide SizeWR-102
Minimum Frequency7 GHz
Maximum Frequency11 GHz
Impedance50 Ohm


100 Watts High Power WR-102 Waveguide Load 7 GHz to 11 GHz

PE6825 100 Watts medium power waveguide load (also known as waveguide termination) has a WR-102 input. This Pasternack WR-102 waveguide load / termination is rated for a minimum frequency of 7 GHz and a maximum frequency of 11 GHz. Our WR-102 waveguide terminator has a maximum input power of 100 Watts.

WR-102 waveguide load / termination PE6825 has an average maximum VSWR of 1.07:1. This Pasternack WR-102 medium power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-102 load ships same day as purchased worldwide as with our other RF parts.
